4 Workstations Tube Hole Punching Machine

4 Workstations Tube Hole Punching Machine is a customized multi-cylinders punch machine, driven by the electrical motor, hydraulic power, manual feeding steel pipe by workers. 4 workstations hole punch machine is widely used to industrial hole punch

4 Workstations Tube Hole Punching Machine

4 Workstations Tube Hole Punching Machine is a customized multi-cylinders punch machine, driven by the electrical motor, hydraulic power, manual feeding steel pipe by workers. 4 workstations hole punch machine is widely used to industrial hole punch, it is available for punching steel tube, stainless steel tube, iron pipe, aluminum alloy, to piercing various shapes of holes.

4 hydraulic cylinders with the different punch and die set, they are integrated on one, this punching equipment is customized as needs of different metal punch purpose. 4 workstations hydraulic punching machine adopts powerful hydraulic cylinder with 63mm, 80mm, 100mm cylinder diameter, the larger hydraulic cylinder can supply bigger power, and was used for the thicker metal material.

Applications of 4 Workstations Tube Hole Punching Machine

  1. Hydraulic Metal Hole Punching Machine is widely used for punching holes for aluminum ladders profiles, steel guardrail, zinc steel fence, iron guard fence, aluminum alloy shelf bracket, handrail, balustrade, railing, banisters.
  2. Available for different material, including aluminum profile, stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.
  3. Available for various shapes of holes punching, including square hole, rectangular hole, D shape hole, triangular hole, oval hole, waist circular hole, prismatic hole, etc.

Video of 4 Workstations Tube Hole Punching Machine

Parameters of 4 Workstations Tube Hole Punching Machine

  • CE Licence:  YES
  • Control:  Electric
  • Capacity:  45 holes/min
  • Accuracy:  ±0.05mm
  • Quantity of Punching molds:  4 Sets
  • Driven power:  Hydraulic
  • Voltage:  100-240V /380-415V 3 Phases/ 50/60Hz Customized
  • Available materials:  Stainless steel tube, Mild Steel pipe, Iron pipe, Aluminum profile, etc.

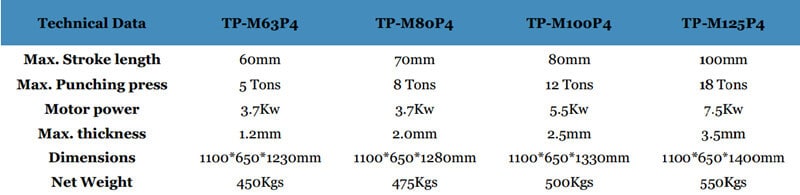

Parameters of 4 Workstations Tube Hole Punching Machine

Specifications of 4 Workstations Tube Hole Punching Machine

4 Workstations Tube Hole Punching Machine is equipped with different punching molds designing which integrated on one. Reasonable design punch and die set, to prevent the scratch on the tube surface. The whole machine must be processed by gantry milling to ensure high precision performance. Punching power is driven by the hydraulic unit with auto-cooling system. This machinery is a electric hole punching machine which available for the most convenient operation and economic consideration.

  • 4 pieces of hydraulic cylinders, will be equipped with several punches and die set as per requirement.
  • 2 pieces of hydraulic cylinders link Hydraulic Metal Hole Punching Machine
  • No scratch on the surface of metal tube and pipe, reasonable designing punch and die set to preventing scratch, auto wiping system removes metal filings.
  • High precision. The whole machine must be processed by gantry milling to ensure high precision performance. High quality guides rail and transmits gear.
  • Available for the different distance of holes punching.
  • Hydraulic driven, step-less pressure regulation.
  • One set of punching machine can be used for different shapes of holes punching, by replacing customized punch and die set.
  • Manual feed for easy maintenance and cheap punching machine consideration.
  • Durable hydraulic cylinder, best quality hydraulic hose.
  • Punch and die set was made by SKD11 with a temper.
  • 24 months warranty for punching machine, 12 months for punch and die set.
